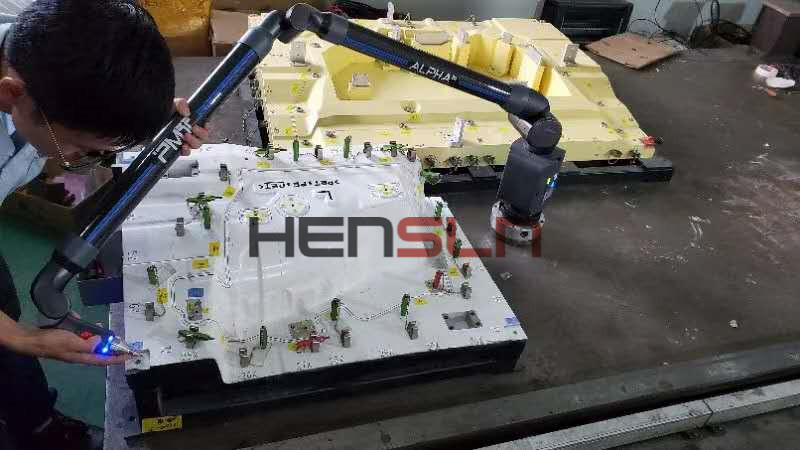

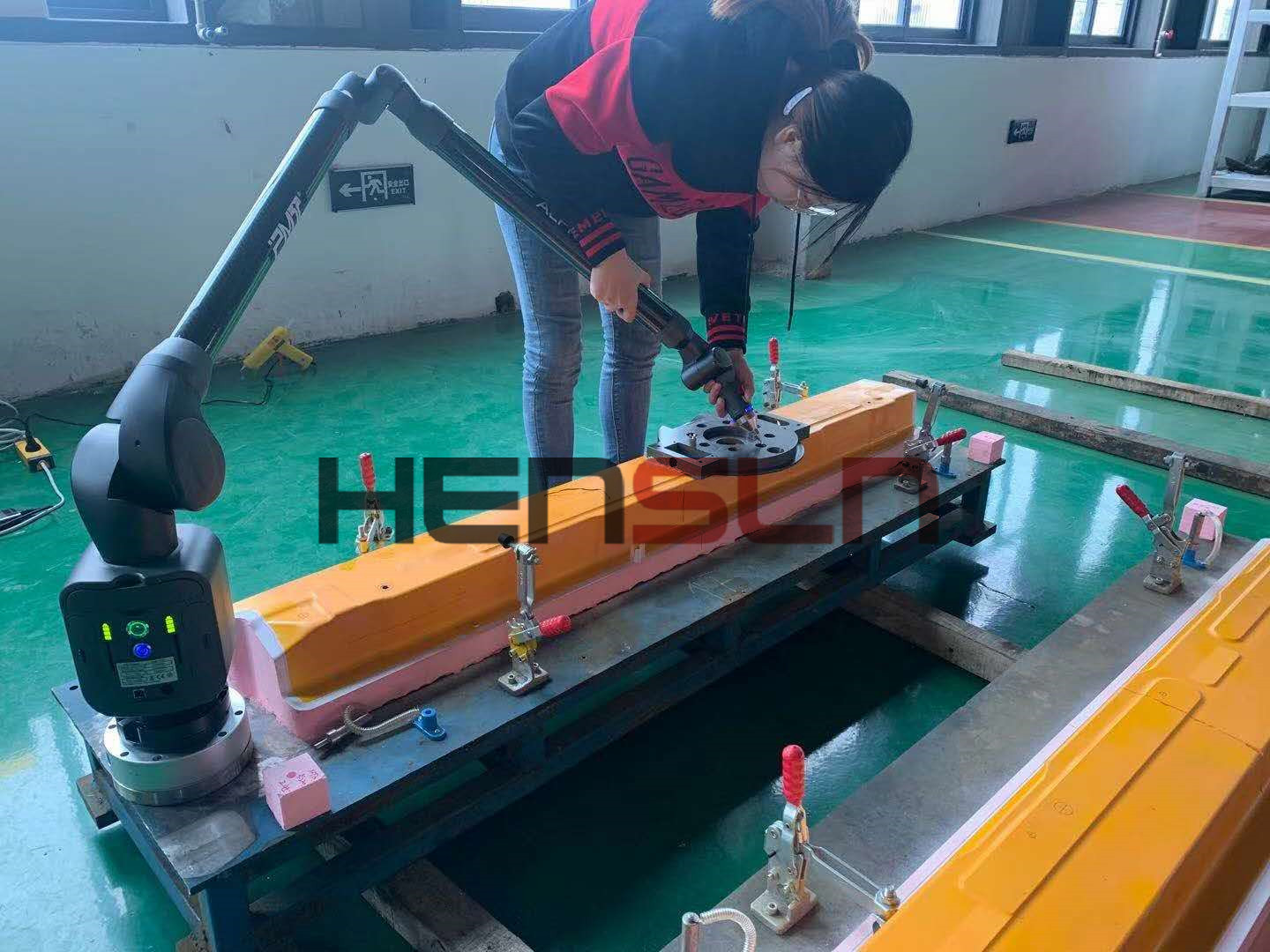

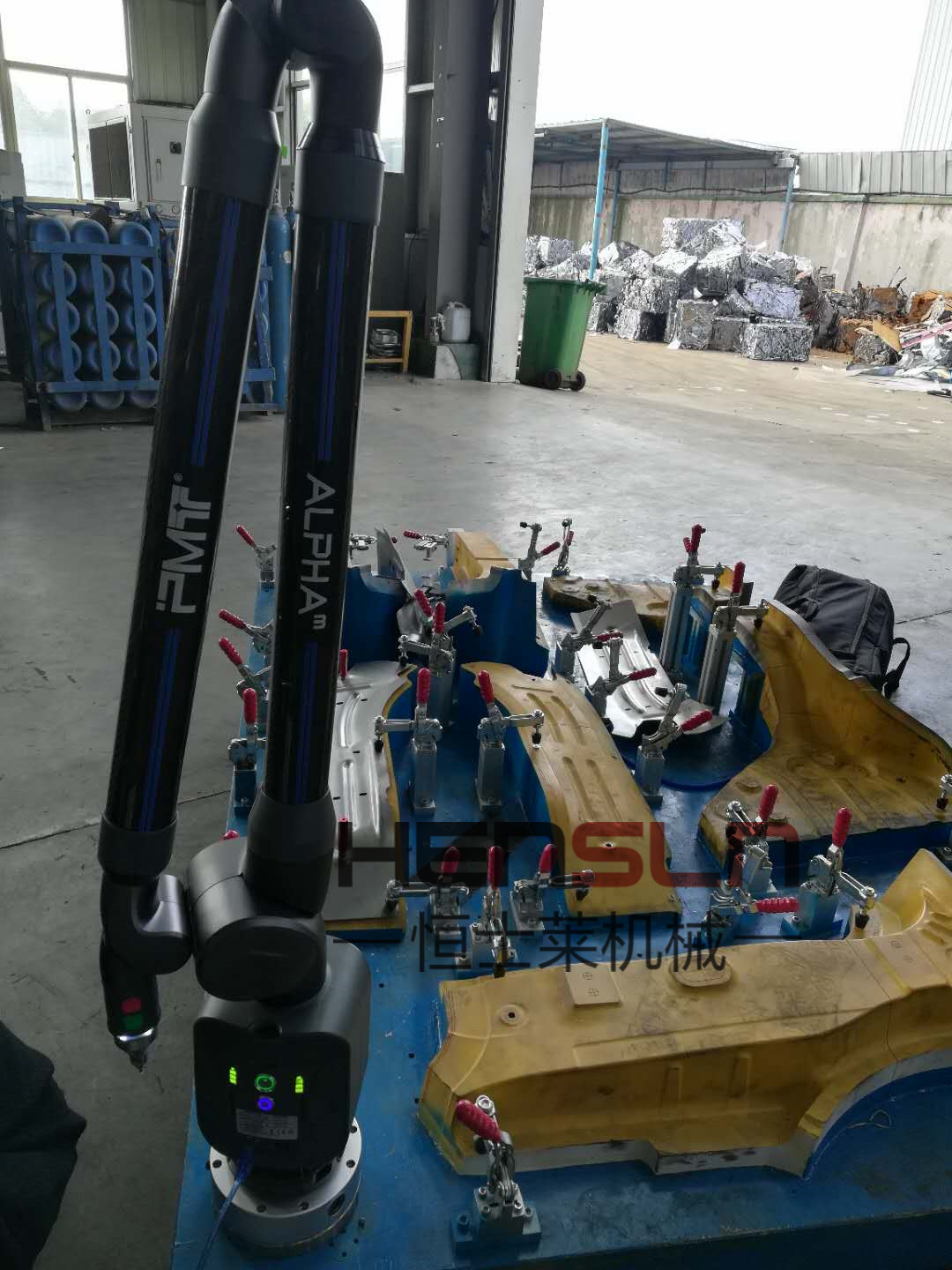

關節臂式三坐標測量臂檢具夾具測量

主要提供技術輸出，在便攜式測量、光學測量、編碼器等領域。PMT 有強大的技術底蘊和創新力，一直以來遵循歐洲標準進行產品的研發和制造，積極融入到全球性競爭的過程中，始終秉承以先進技術為導向的理念，傳承德國匠心制造精神，順承質量管理體系，對產品品質的把控不遺余力。

PMT 已在德國、日本設有研發中心，中國設有制造基地，在中國各主要工業城市建立了健全的銷售服務網絡，保證有效和及時地提供專業技術支持和服務。

未來，我們將繼續堅持以技術革新為引導，讓測量更加簡單和方便為使命，持續為客戶創造價值，與客戶共同進步，實現公司長遠戰略目標與社會價值。

PMT is a high-tech company specialized in measurement technology, with full independent R&D and production capability. In the early stage, it mainly provides technology output and core technologies development and customization for many well-known measurement companies in the world, especially in the field of portable measurement, optical measurement, encoders, etc. In the course of its proactive participation in the global competition, PMT has an abundant accumulation of technology and innovation and always been following European standards in product research and development. Oriented by advanced technology all the time, PMT inherits German craftsmanship and quality control system and goes to great lengths to control quality. With the support of Darmstadt University of Technology, PMT has achieved certifications by European standards for its products.

PMT has set up R&D Centers in Germany and Japan and manufacture base in China. It has already established robust service network in major industrial cities in China to guarantee an effective and prompt professional technical support and service to our customers.

Looking into the future, PMT will continue to be guided by technological innovation. Make measurement much easier and more convenient as our mission, we will create a sustainable value for customers, pursue a common progress with them, continuously exceed customer expectations, achieve long term strategic goals and create value to the society.

技術描述Technical Descriptions

描述Description：

1、便攜性：主機采用高強度碳纖維材料，輕便易攜帶（僅8-14公斤左右），能夠滿足隨時隨地測量需要。

Portability: the host is made of high-strength carbon fiber, light and easy to carry (only about 8-14 kg), which can meet the needs of measurement anytime and anywhere.

2、軟件功能齊全：可進行幾何元素、三維坐標、形位公差、、逆向工程、CAD數模與實際零件比對檢測、裝配，夾具檢測、檢具檢測。

The software has complete functions: geometric elements, three-dimensional coordinates, form and position tolerance, reverse engineering, CAD digital model and actual parts comparison test, assembly, fixture detection, inspection tool detection.

3、測量范圍寬：您可以選擇1.5米至4.5 米測量范圍，并可以通過蛙跳方式擴展到更大的測量范圍。

Wide measurement range: you can choose the measurement range from 1.5m to 4.5m, and expand to a larger measurement range by leapfrog.

4、USB數據接口或者無線WIFI連接：采用通用數據線纜與計算機間通過USB數據接口通訊，并且可以實現熱插拔；也可以使用無線WIFI連接，實現無線連接測量。

USB data interface or wireless WIFI connection: universal data cable is used to communicate with computer through USB data interface, and hot plug can be realized; wireless WIFI connection can also be used to realize wireless connection measurement.

5、多自由度設計讓您實現空間點位置和隱藏點的測量，等臂長設計無測量死角。

Multi degree of freedom design allows you to measure any space point position and hidden point, and the equal arm length design has no dead angle.

6、內置自平衡機構，操作輕巧、靈活。

Internal counter balancing system, easy and flexible in operation.

7、內置可循環充電電池，可在無外接電源環境下工作，一次充電可測量16小時。

Built in rechargeable batteries, can work in the environment without external power supply, and can measure 16 hours at a time.

8、內置高靈敏溫度傳感器，具有實時溫度補償功能，保證在不同的溫度下都能實現高精度的穩定測量。

The built-in high sensitive temperature sensor has the function of real-time temperature compensation to ensure the high-precision and stable measurement under different temperatures.

9、快速箝位安裝機構，可提供多種安裝形式。

Quick clamping installation mechanism, which can provide a variety of installation forms.

選配項：折疊可升降三腳架

最低高度730mm，最高高度1200mm,承受重量300kg

工作環境溫度：-15℃-55℃,適合各種測量臂產品的安裝，可移動并且穩定

Folding Adjustable Tripod

Minimum height 730mm, maximum height 1200mm; Max. load weight: 300kg; Operating

temp range: -15℃-55℃, used for all PMTARM, portable and stable.

性能指標 Alpha M Series Performance Specifications

 關節臂式三坐標測量臂檢具夾具測量

環境條件要求 Environment Specifications

工作環境溫度Operating temp range: 0 °C至40 °C

儲存溫度Storage temperature :-30? -70? C

環境濕度Humidity: 95%（非冷凝）

供電系統 Electrical requirements: 110 – 240 VAC

認證Certificate: CE

優勢 Advantages

l 內平衡系統 Internal Counter Balancing

l 雙能量電池 Double High-energy Batteries

l 等臂設計 Perfect Equal Length Arm Design

l 高速WIFI性能  High-speed WIFI Performance

l 航空碳纖維臂身 Aerospace Grade Carbon-fiber Material

l 較高性價比High Cost Performance
